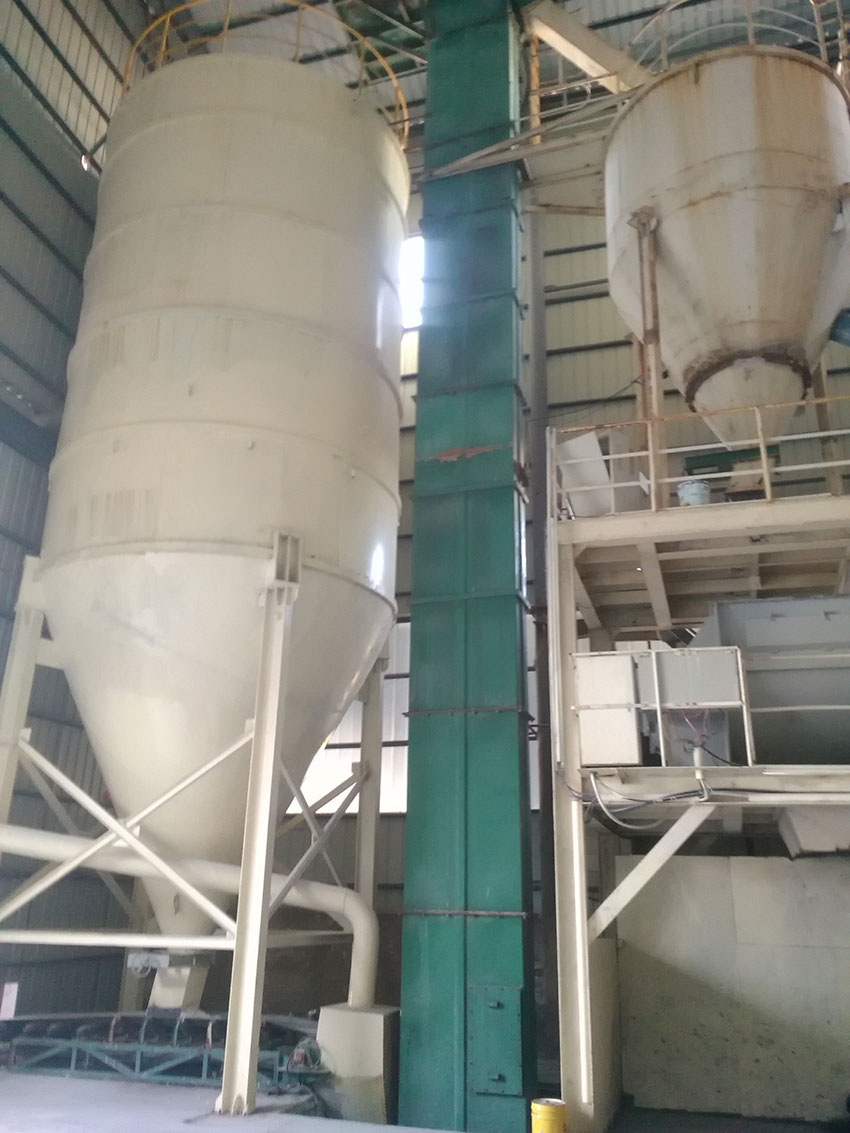

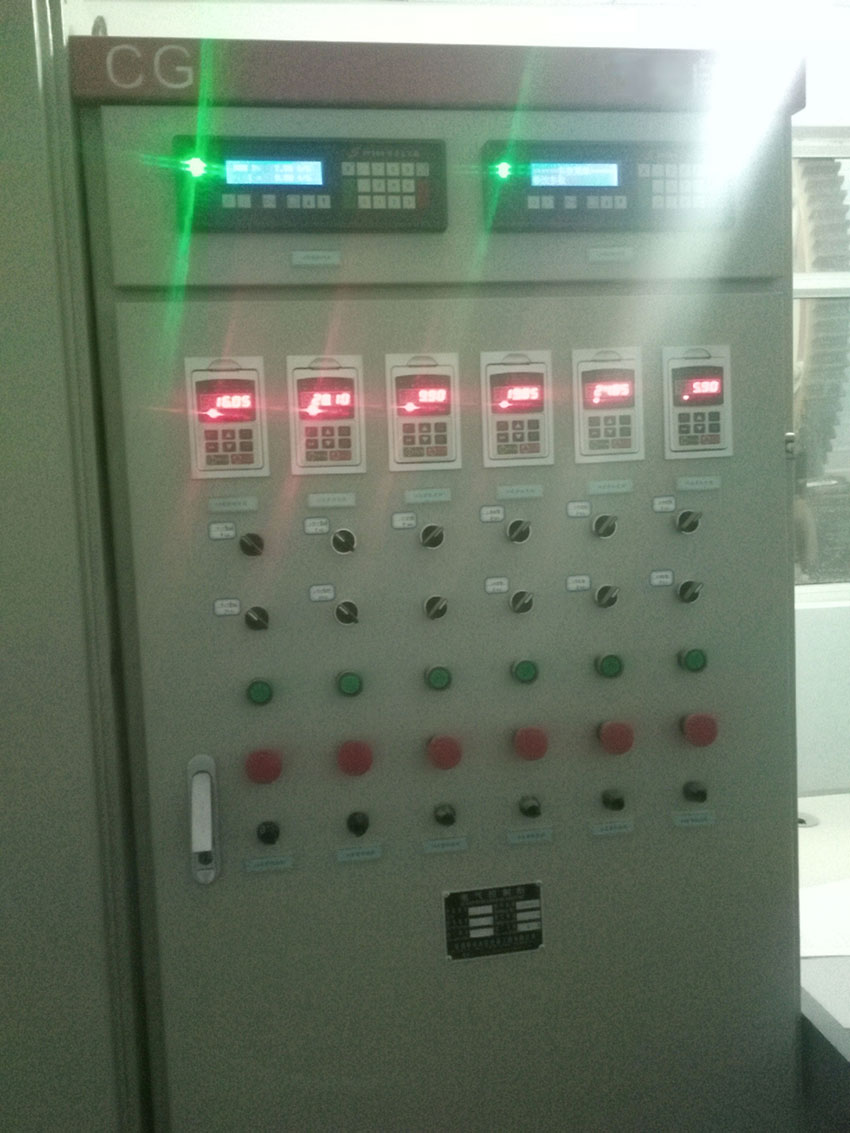

Application Of JY500B1 Belt Scale Controller In Gypsum Plant

JY500B series of belt scale controller provide outstanding functionality, flexibility and reliability through innovative design with the incorporation of state-of-the-art technology all on a common modular platform. Each instrument model is designed for specific applications and is able to be upgraded with plug in boards making it suitable for the majority of production control and monitoring functions including providing valuable data which is essential in industry today in order to satisfy up-to-the-minute process requirements．

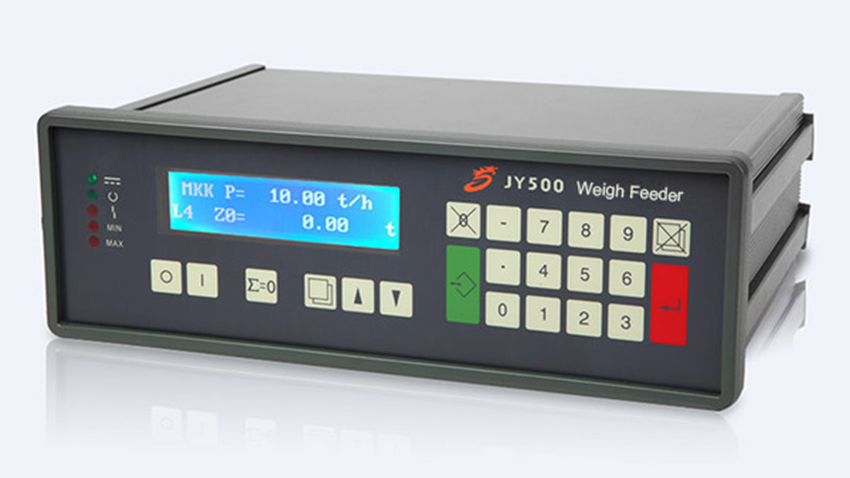

JY500B belt scale controller adopts 32-bit microprocessor electronics with a 110x30mm display and high speed ∑-A/D conversion method with max.100 times/s conversion speed. It can make up batching scale with load cell and other mechanical parts, applied in high speed and high precision weighing control occasion.

JY500B1 is mainly apply to bulk measurement in various industries such as power generation, coal industry, metallurgy, mining, harbor, chemical and building material industry.
This manual applies to controlling systems equipped with conveyor blet.

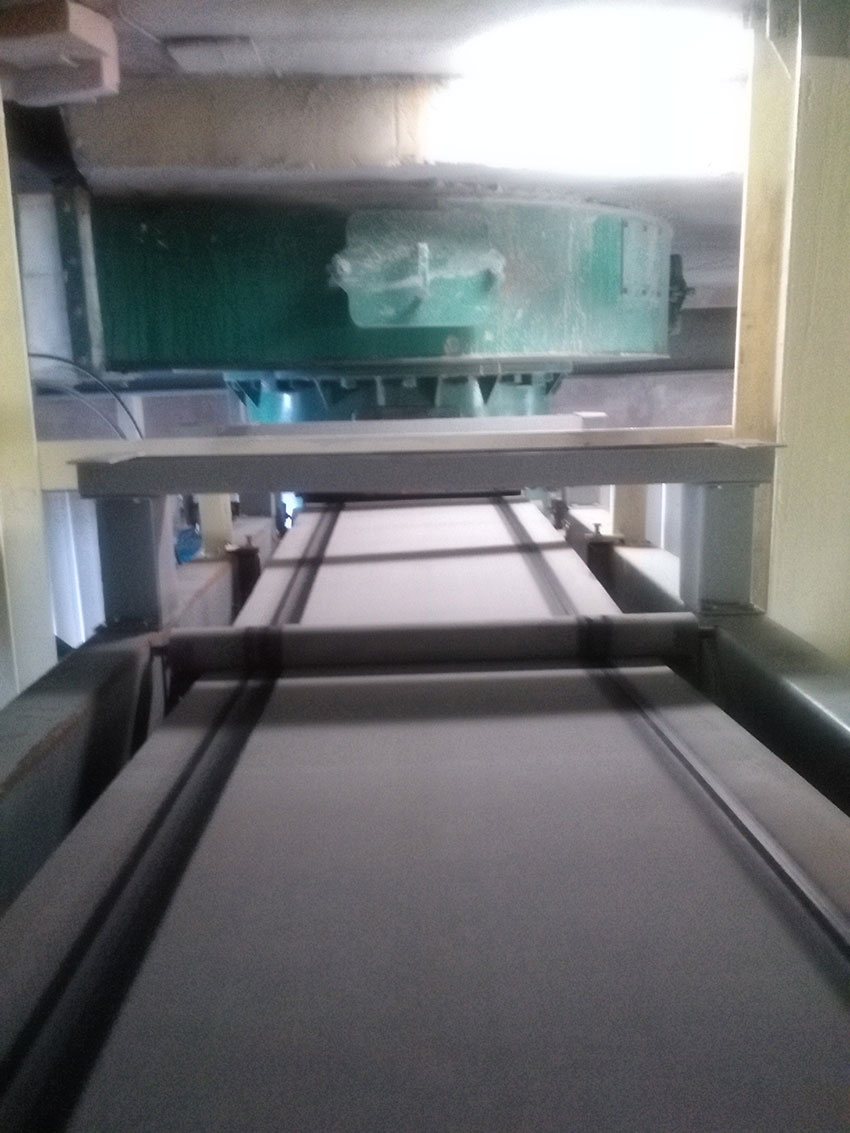

1.Weigh feeder
Control of feed rate via belt speed

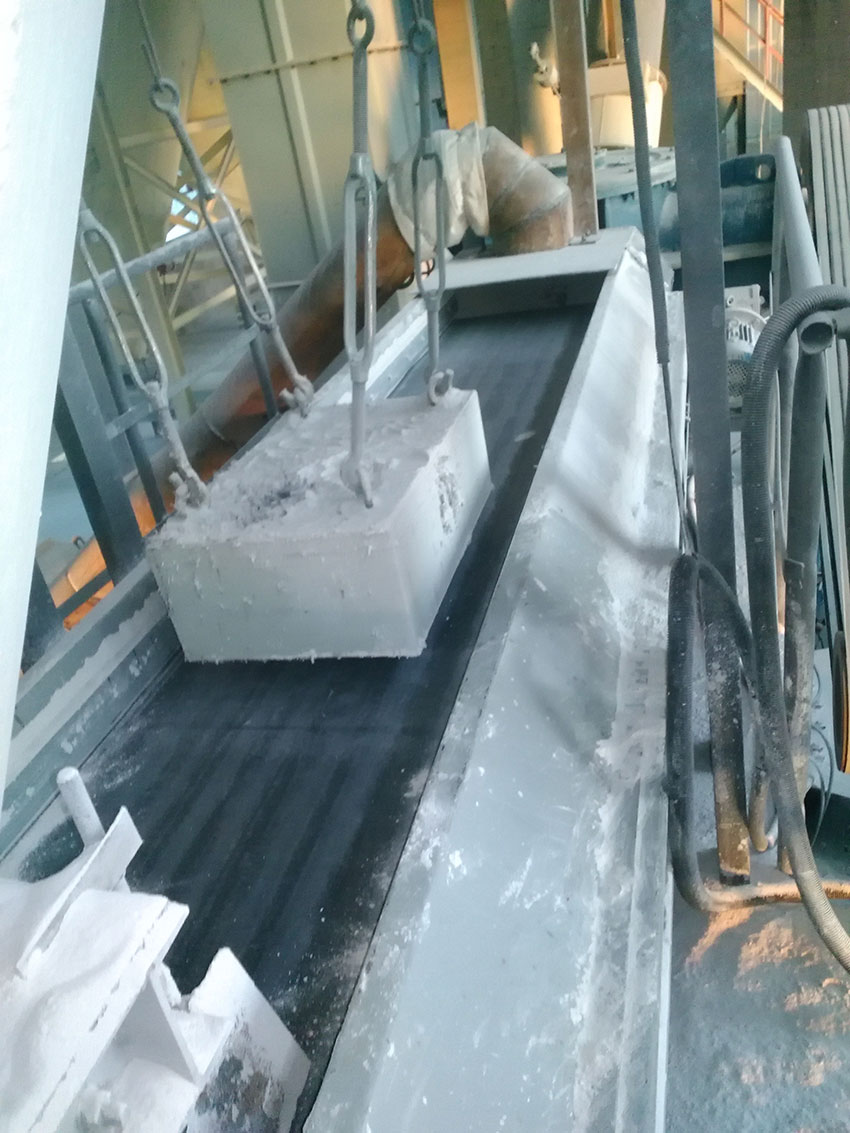

2.Belt weigher with controlled prefeeder
Control of feed rate via belt load
3. Belt weigher with constant load

Control of belt load via belt speed

Function Features
1 Have digital switching and analog I/O interface, easy to connect with Host compute, crates to DOS system and realize remote control operation.
2 Use a variety of standard communication protocols such as MODBUS, with a corresponding communication interface, easy to use FIELDBUS technology, crates to FCS system, and realize digital system.
3 Data storage using a combination of FLASH and RAM mode, various processes data can be saved automatically when the system is powered down, can keep running on the original process parameters when the system is re-power.

4 Input related parameters and installation verification data without physical calibration, the system generates correction factor automatically without physical calibration, realize hi-intellectualized weighing calibration and verification.

5 Provide linearization correction routine real-time zero calibration, ensure accurate weighing and long-term stability.
6 Intelligent PI regulator can realize unperturbed switchover of feed rate and volume feeding synchronously.
7 With real-time tips, check, events alarm function on system operation information and events information.

8 Use high-reliability industrial grade component and advanced anti-jamming technology, have tremendous anti - jamming ability to static electricity, sparks, electromagnetic, etc.
