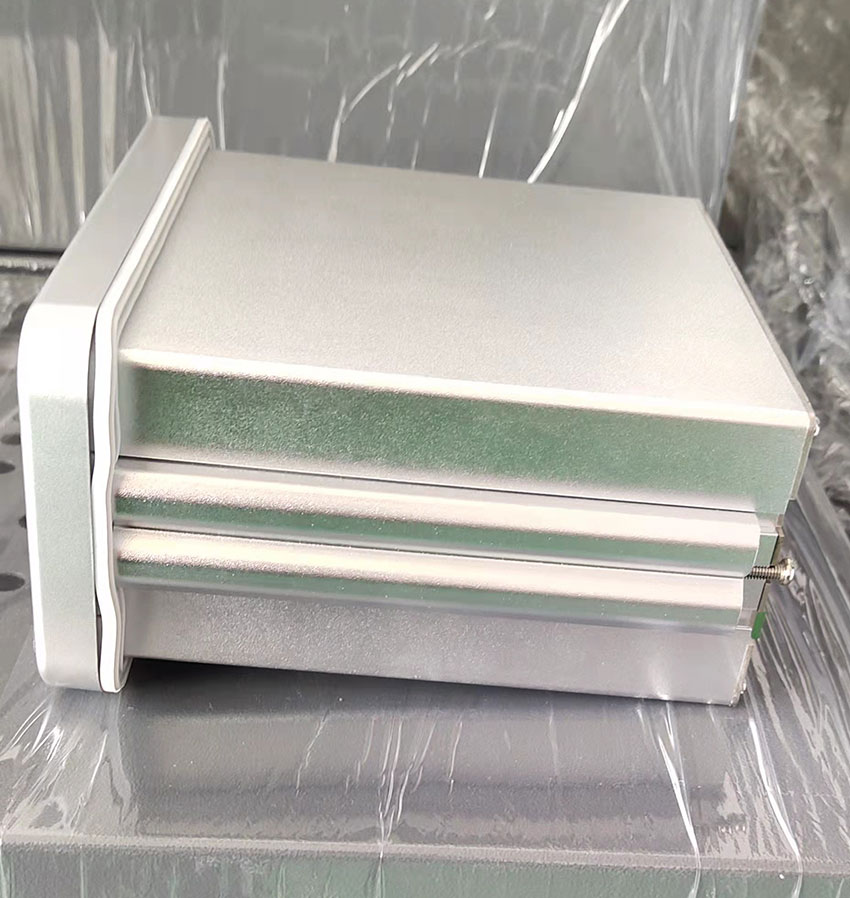

JY500C7 Powder And Particle Quantitative Packaging Controller

JY500C7 Series quantitative controller is mainly designed as the control unit of gravimetric quantitative packaging automatic weighing instrument.

JY500C7 Series quantitative controller adopts English prompt words, direct interface which is easy to use and convenient to learn, applicable to building materials, chemical industry, food, iron & steel, fodder and other industries.

Main functions & features

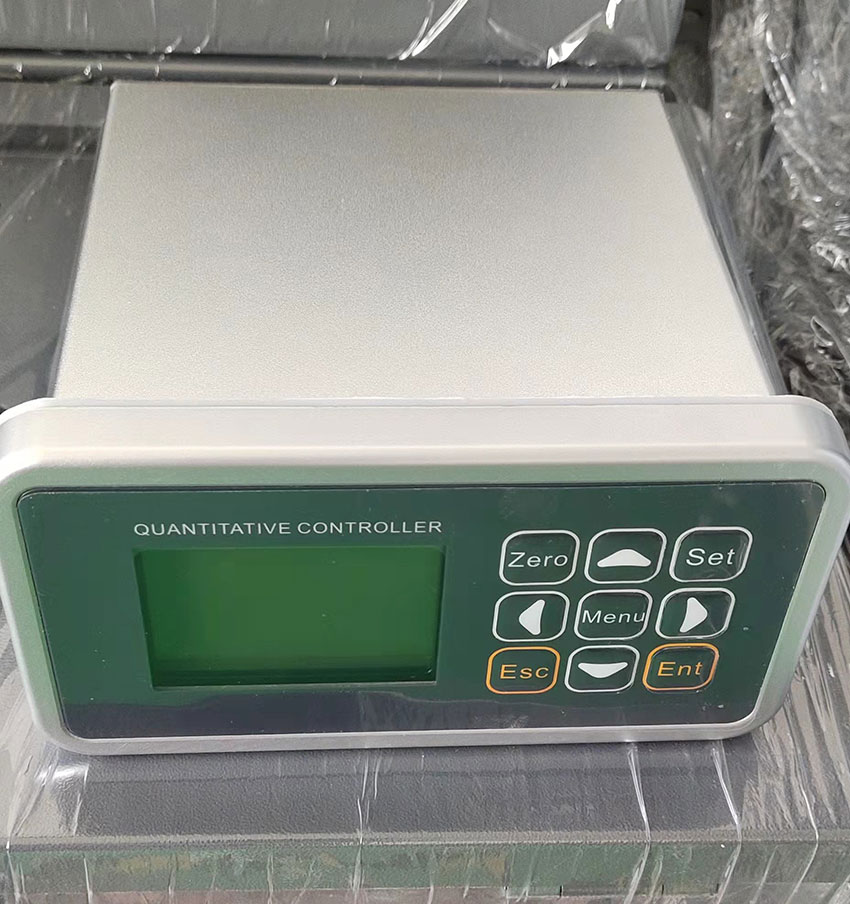

1)LCD/OLED displays in English with a nice interface, easy to control and humanized operation design.
2)Filling mode can be configured with hopper or without hopper or discontinuous totalizing.
3)Three-level feeding flow control (fast, medium, fine), fine feeding can be configured manual or auto mode.
4)Can pre-store 11 groups of quantitative control parameters.
5)Can be configured several quantitative control operation for one bagging in hopper mode.
6)Various time delay functionality for avoiding joggling.
7)Available to select the function of automatic zero-setting (with a hopper) and automatic taring (without a hopper).

8)Inputs could be configured as material level detection function. 9)Outputs could be configured as clamping and vibrating function.

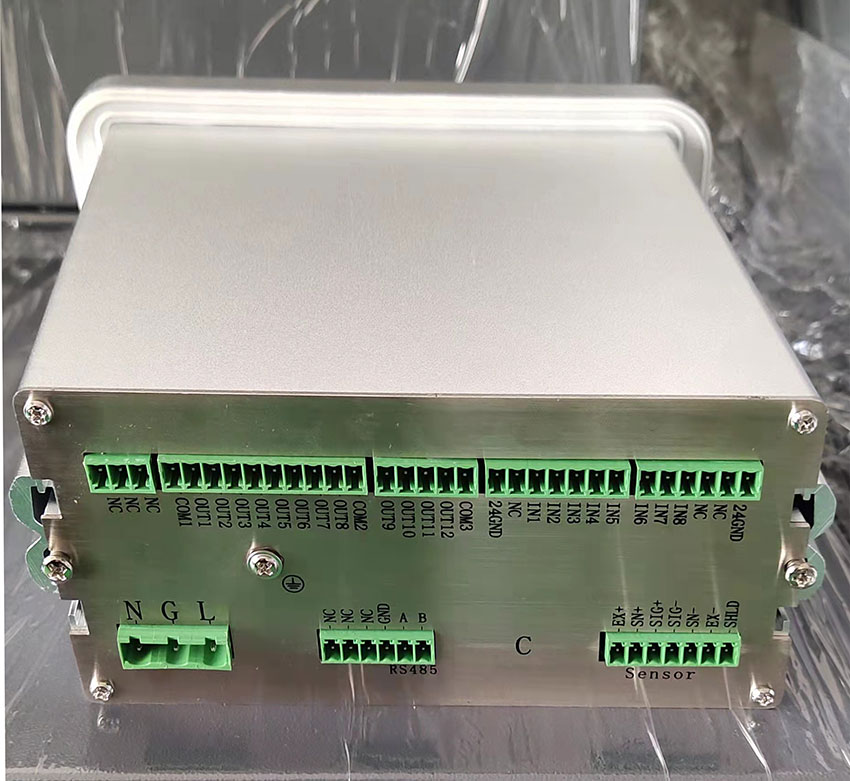

10)20 I/O (8 inputs/12 outputs), and the port functions can be programmed (pre-assigned).
11)Outputs may be normally open or close by user's configuration.
12)Automatic fall correction can be selected.
13)Packaging batch number can be set so that the machine can automatically stop when reaching the preset batch.
14)It has a filling accumulative function, and the result of accumulation can be output through the print output interface.
15)With sewing machine control function.
16)Double - bucket scale can be controlled by combination of two of this series.
17)It has a non-object calibration function.
18)It has I/O test function for the trouble shooting of the electric circuit.

19)Switching power supply and over-voltage protection circuit are used for adapting to a large power supply variation.

Shenzhen Zhuohe instrument Co., Ltd. specializes in providing high speed and high precision weighing controllers with strong anti-interference ability, good stability and long service life.Buy cost-effective weighing controller welcome to contact us!
