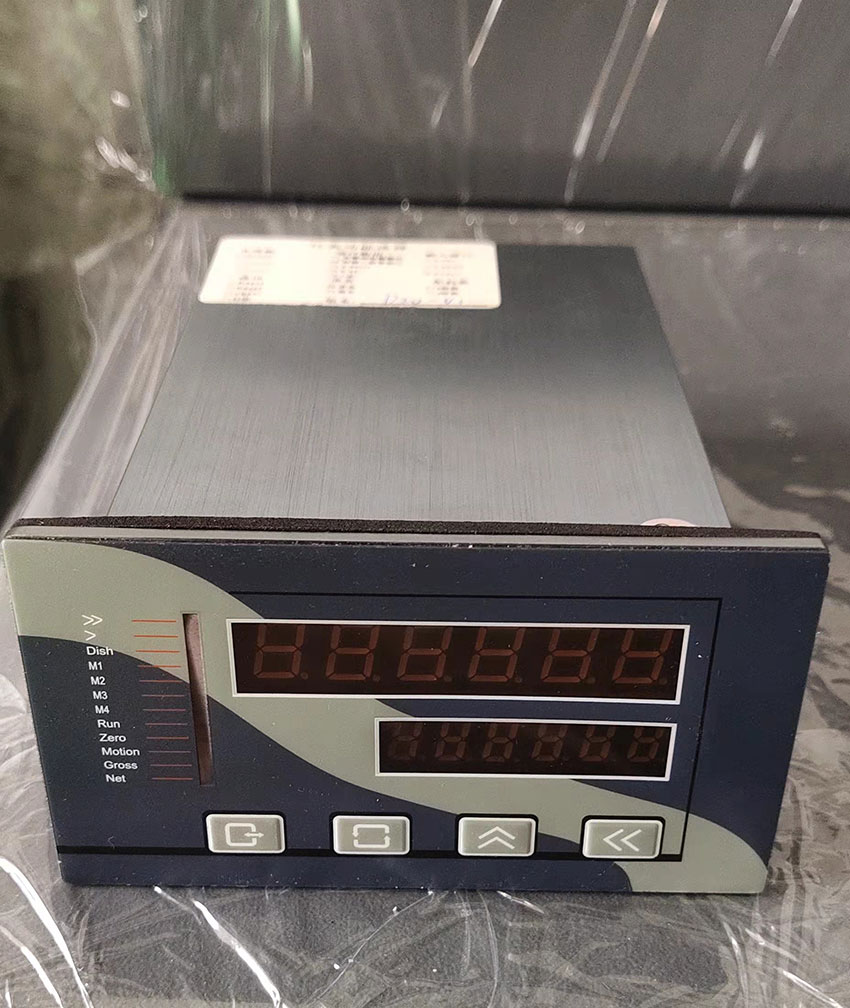

JY500D13 digital weight transmitter electronic weighing control instrument

D13 series digital weight transmitter is mainly used as weighing digital signal conversion component in weighing equipment. The product has weight limit judgment function and can be used for weight limit control.

D13 series weight transmitter has led digital display, which is simple to operate and easy to master. It is suitable for building materials, chemical industry, food, steel, feed and other industries.

Main functions and features:
1) It is used where it is necessary to convert the weighing signal into digital communication signal and standard analog output signal.
2) The double row led nixie tube respectively displays the current weighing value, latch value, output current value and other information.
3) The four keys are respectively used for zero setting, peeling, locking and display options.
4) Each type of D13 instrument is provided with an optocoupler isolation input terminal for receiving external zero setting, peeling or latch control signals;

5) Each type of D13 instrument has four weight limit judgment functions: over quantity, upper limit, lower limit and under quantity;

6) RS485 and RS232 (s type) can be selected for digital communication interface.
7) Optional analog signal output, 4-20mA (type I) or 1-5V (type V) can be selected.
8) Optional Ethernet interface (type E), supporting Modbus-TCP.
9) Optional can interface (type C), supporting CANopen.

10) It has no physical calibration function.

11) It has 9-point polyline nonlinear correction function.

12) Optional latch peak or current real-time weight value.
13) 160 weighing values can be automatically latched, and the data is first in first out for future reference. It is suitable for data acquisition at the rate of 100 / s.
14) With programmable function, appropriate performance can be obtained through parameter setting.
15) Switching power supply and overvoltage protection circuit are adopted internally to adapt to large power supply fluctuation.

16) Panel installation form, panel area is only 110mm (width) × 62mm high.
