Supplier/Manufacturer/Exporter of JY500B1 Belt Scale Controller

In industrial production, it is often necessary to feed and mix all kinds of raw materials according to a certain weight, which is quantitative weighing ingredients. In the production process of products, improving the accuracy and speed of ingredients has a direct impact on improving the quality and production efficiency of products.Therefore, the requirements of quantitative weighing controller are relatively high, so what kind of quantitative weighing controller is the most suitable, which production of quantitative weighing controller is better?All we need to know.A belt batching controller for quantitative weighing machine is recommended below.

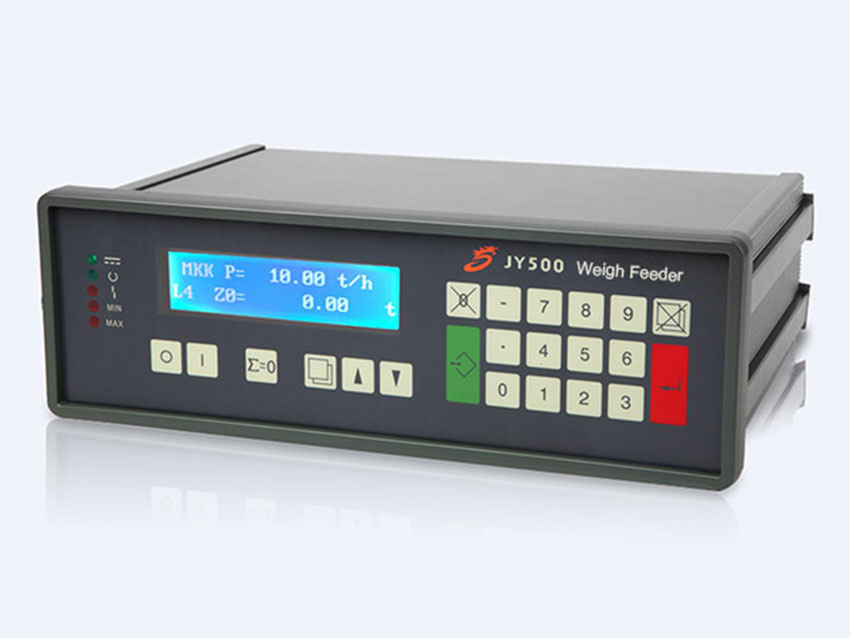

JY500B1 is a belt conveying type of continuous cumulative automatic weighing instrument (belt scale) weighing display control instrument.It can be used for belt measuring scale, belt batching scale, quantitative feeder and other conveying bulk materials, in a continuous automatic weighing way to determine and cumulative material quality.In the weighing process, the feed flow or feed batch control can be implemented in real time.

Products absorb and learn from foreign advanced electronic weighing technology, combined with the production and management practice of domestic application enterprises, with complete independent intellectual property rights.It is one of the most widely used, replace similar imported products of high intelligence, high precision weighing display control instrument, well received by customers at home and abroad, has been widely used in power, coal, metallurgy, mining, port, chemical, building materials and other industries bulk material measurement and batching control process.

Function Features:
1 Have digital switching and analog I/O interface, easy to connect with Host compute, crates to DOS system and realize remote control operation.
2 Use a variety of standard communication protocols such as MODBUS, with a corresponding communication interface, easy to use FIELDBUS technology, crates to FCS system, and realize digital system.
3 Data storage using a combination of FLASH and RAM mode, various processes data can be saved automatically when the system is powered down, can keep running on the original process parameters when the system is re-power.

4 Input related parameters and installation verification data without physical calibration, the system generates correction factor automatically without physical calibration, realize hi-intellectualized weighing calibration and verification.

5 Provide linearization correction routine real-time zero calibration, ensure accurate weighing and long-term stability.
6 Intelligent PI regulator can realize unperturbed switchover of feed rate and volume feeding synchronously.
7 With real-time tips, check, events alarm function on system operation information and events information.

8 Use high-reliability industrial grade component and advanced anti-jamming technology, have tremendous anti - jamming ability to static electricity, sparks, electromagnetic, etc.

Belt scale batching controller produced by Zhuohe Instrument is high speed and high precision, strong anti-interference ability, stable performance, less maintenance, high cost performance, very popular in the market, if you are interested in our products, welcome to consult.
