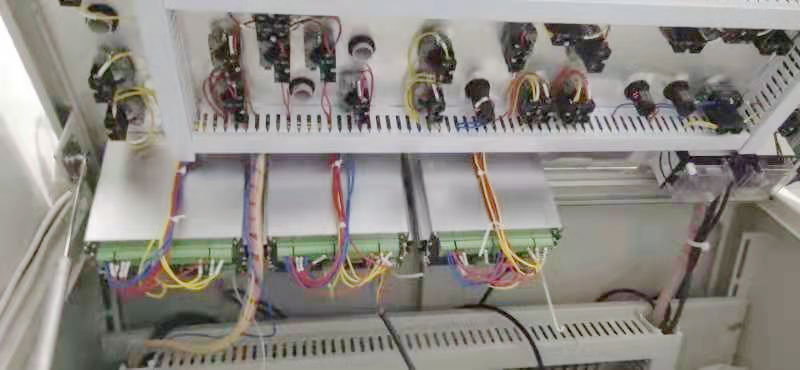

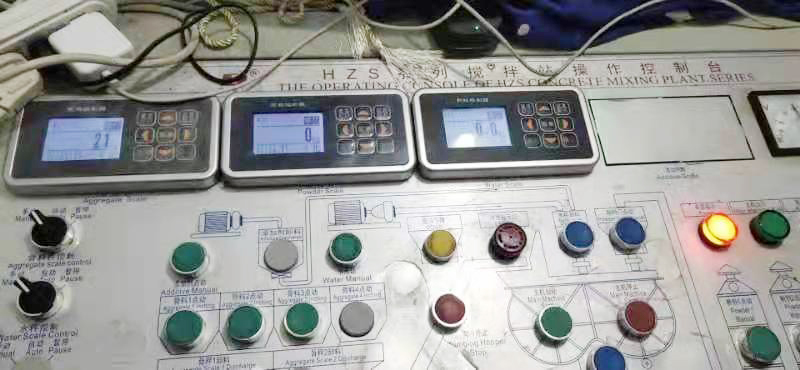

JY500A11 Batching Controller's Application For Concrete Mixing Plant Station Console

JY500A11 Batching Controller's Application For Concrete Mixing Plant Station Console

Weighing batching-controller is designed as the control unit of batching weighing instrument adding various materials in a weighing hopper. It takes the complexity of industrial site into full consideration. The elaborate software and hardware design effectively safeguards production and management.
It adopts dot matrix display device, with English character prompt and a direct interface which is easy to use and convenient to learn, applicable to building materials, chemical industry, food, iron & steel, fodder and other industries.

Main functions & features
LCD displays in English with a nice interface, easy to control  and lso with user friendly design.
Able to store 9 formulations, each controlling the dosing of 6 different materials.
Automatic difference revision function allows for switching control between manual and automatic mode according to actual condition.
Automatic error diagnostics allows for easy finding and solving problem, providing indication and guiding error correction.
Integration of weighing, display, printing and batching provides complete batching control functions.
Support automatic/manual batching, suspending batching at any time, allowing for switching-over between automatic and manual discharging during discharging.
Internal integrated switch power can work normally when voltage fluctuation is below 40%.
Allow for analog and digital filtration as well as automatic impulsion delay.
Suspend operation during batching at any time, can continue batching after restart.
Allow for automatic zero resetting, self-feeding control and inching compensation after batching startup.
Support 6 different printing forms and inquiry for report forms, may monitor actual production data and formulation setting at any time.
May set batching number for quantitative production.
Support automatic accumulation of material consumption and print-out of accumulation results.
Support date and time display & setting.

Basic parameters
Display window: 128*64LCD English character display
Scale interval: 1, 2, 5, 10, 20, 50
Fullscale value: 59999
Decimal place: 0, 0.0, 0.00, 0.000
Unit of weigh: g, kg, t
Overall dimensions: 159(W)×167(D)×81(H)mm
Product weight: About 1.2 kg
Printing communication interface type: RS232 even-parity
Power supply range: AC 220V （AC175-245V），50Hz/60Hz

If you are interested in our weighing controller, welcome to consult.
