Introduction to Batching Control Instrument

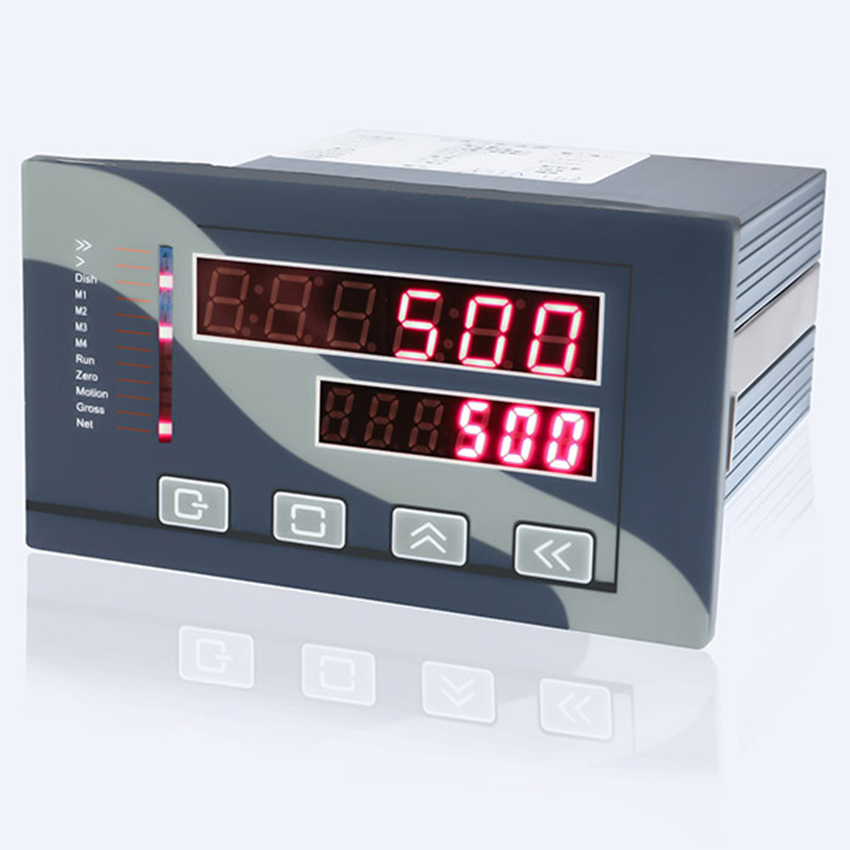

JY500A4 Series weighing batching-controller is designed as the control unit of batching weighing instrument adding various materials in a weighing hopper.

JY500A4 Series weighing batching-controller adapt pocket-size case, it  has two rows of LED display and four keys，which is easy to use and learn.

Features
●Pocket-size case, compact panel, two rows of LED display, four keys, easy to use and learn.
●Can control 4 different material proportioning.
●Can inch material during feeding.
●Power-off protection, it can continue to batch after restart the instrument.
●May set batch number. it can automatically stop when finishing the set batch number.
●Various communication interfaces and protocols.
●Internal integrated switch power can work normally when voltage fluctuation is below 40%.

Technical parameters
Basic parameters
Display window six 12.7mm and six 7.62mm LEDs display
Scale interval 1、2、5、10、20、50
Maximum display 59999
Decimal place 0、0.0、0.00、0.000、0.0000
Unit of weight g, kg, t (gram, kilogram and ton)
Overall dimensions 110（W）x 150（D）x 62（H）mm
Product weight About 0.6 kg
Performance index
Static accuracy class Up to the requirement of three-level weighing instrument
Maximum signal input range 0.1mV ~ 20 mV
Maximum sensitivity 2.5μV/d
Input impedance at sensor interface ≥20MΩ
Non-linear error ≤0.002%FS
A/D conversion speed 50 SPS (Samples Per Second)
Working parameters
Type of load cell resistor strain type weighing sensor
Excitation voltage of load cell DC 8V,100mA,up to 4 350Ω analog load cells.
On-off output (contact) capacity DC 24V  / 0.1A
On-off input DC24V/4--6mA
Working condition
Power supply range AC 220V （AC175-265V），50Hz/60Hz
Power Consumption ≤10W
Operating temperature -10°C~40°C
Humidity range ≤90% relative humidity (non-condensing)
